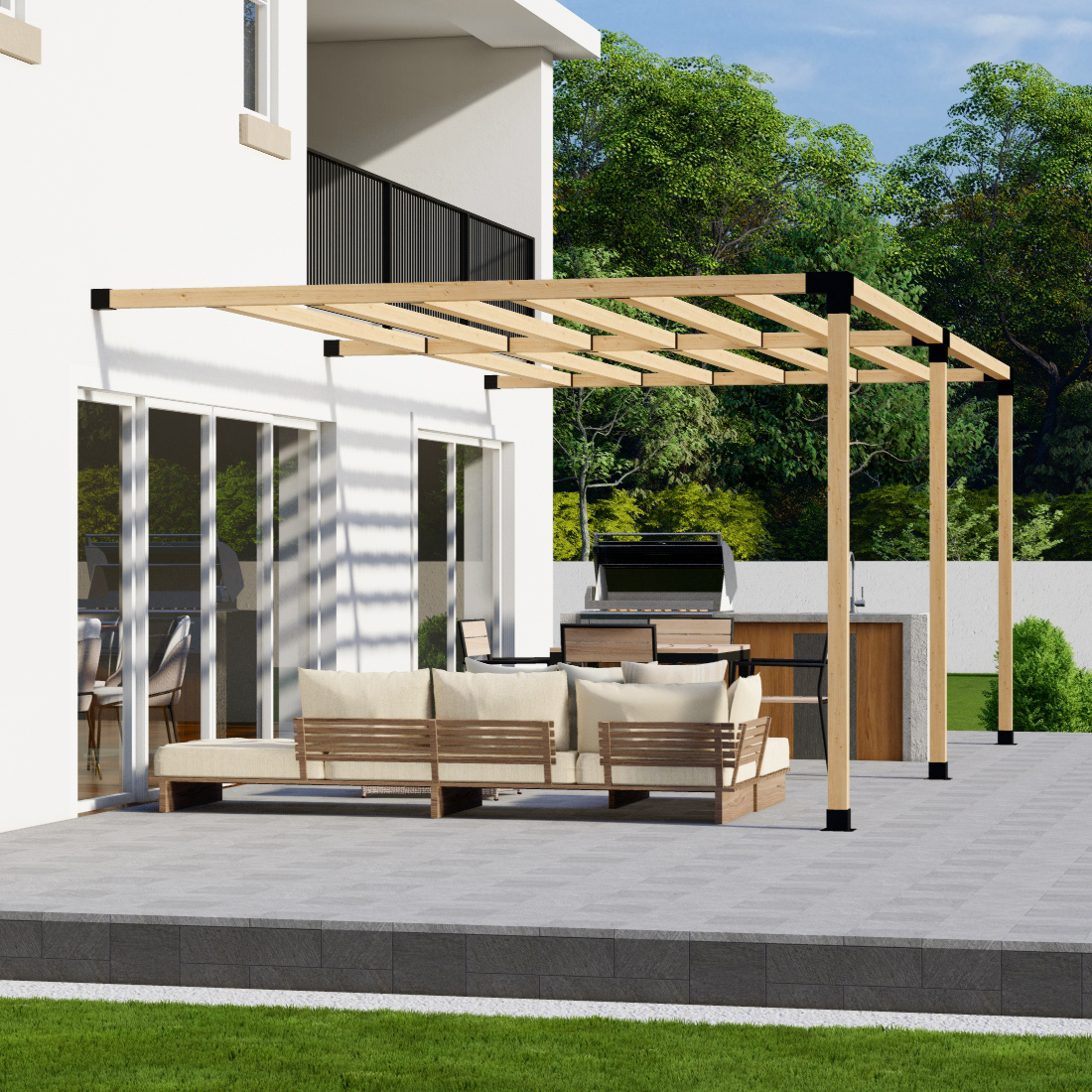

Kit de pergola adossée à la maison

About this Pergola Kit Configuration:

• Type: Attached to house (see the free-standing version of this kit)
• Bracket size: 4x4 (see the larger 6x6 version of this kit)
• Dimensions: Up to 24' attached x 12' out from home (see the inverse up to 12' attached x 24' out from home version of this kit)
• Roof style: Square posts (see this same kit with an inline, traditional, or angled slats roof)
• Privacy wall(s): None (see this same kit with 1 or 2 privacy walls)
• Rafter spacing: Medium (see this same kit with far or close rafter spacing)

Want something completely different? Use our easy design tool to create your own pergola configuration.

Included in this House-Attached Pergola Kit:

• 3x base brackets (for 4x4 wood)
• 3x wall-mount brackets (for 4x4 wood)
• 2x 3-arm post brackets (for 4x4 wood)
• 1x 4-arm post bracket (for 4x4 wood)
• 24x 4x4 insert brackets for 12 roof/wall slats (4x4 wood)
• Stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into brackets
• NOTE: Wood (lumber) and anchoring hardware for securing the base brackets and wall-mount brackets are NOT included and will need to be purchased locally

This bracket/hardware kit will accommodate any house-attached pergola ranging from 13-24 feet wide (attached) by 4-12 feet deep. The pergola does not need to be the exact dimensions shown in the images on this page.

The DIY-friendly kit includes 24 4x4 insert brackets. While the intent is that all 24 of these brackets will be used to insert 6 roof rafters over each of the 2 roof sections (12' span each with medium slat spacing), you can use the brackets any way you'd like (i.e. adding a privacy wall or half/partial wall, adding a side railing, increasing the number of slats in a roof/wall section, etc.). You can also purchase additional 4x4 insert brackets here.

Want a Larger 6x6 Frame?

Click here to see this same house-attached pergola kit but with larger 6x6 wood posts and 6x6 roof rafters (instead of 4x4 wood posts and 4x4 roof rafters).

About Our Steel 4x4 Pergola Brackets:

• Made with premium quality steel
• Made of 14-gauge steel (~2.0mm thick)
• Laser-cut, bent and welded
• Advanced weather coating technology to withstand extreme weather conditions
• Pre-drilled holes for securing wood and accessories to brackets
• Made for dressed lumber commonly called 4x4s (actual dimensions are 3.5" x 3.5")
• Includes stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into brackets
• Reduces your pergola build time by as much as 75%
• Backed by our 5-year warranty
• Shipped directly to your doorstep from Boise, Idaho
